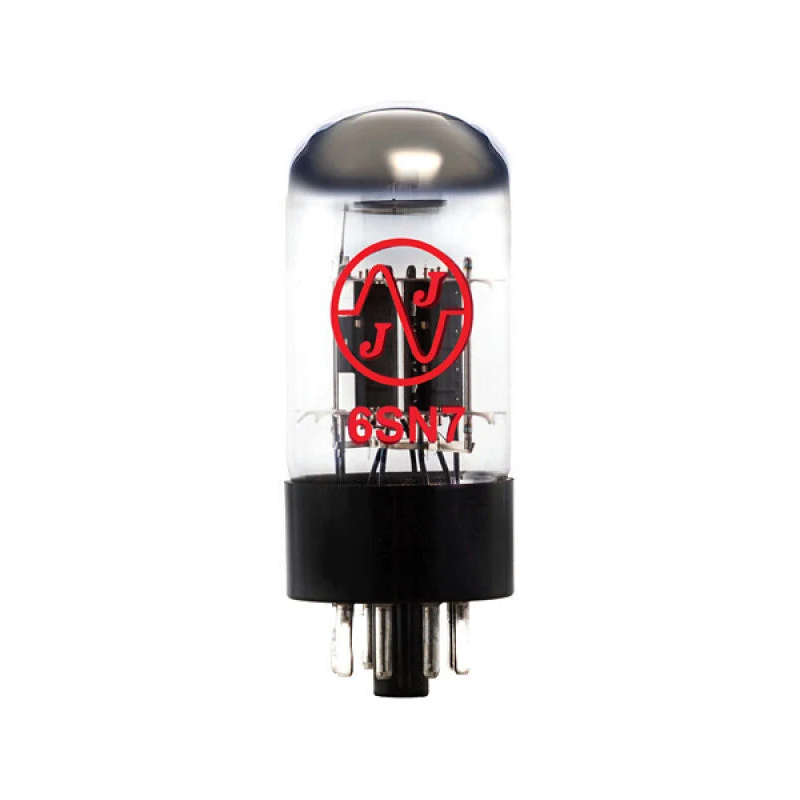

6SN7 6SN7GT Triode Vacuum Tube

Dual triode6.3V / 0.6AOctalSPICE
SourceRCA RC-15 (1939) · Sylvania · Tung-SolReviewed2026-05-29StatusDataModelCalcModelKoren v1PDF

Medium-gain triode for driver and line stage applications

Datasheet ↗SPICE
20
7.7kΩ
2.6mA/V
2.2pF
4.0pF
0.80pF
GAIN20%
POWER6%
DRIVE92%
LINEARITY90%
SPECIFICATIONS
Heater6.3 V · 0.6 A
Max Plate Voltage300 V
Pa max2.5 W
Gain Factor20
gm2.6 mA/V
rp7.7 kΩ
Inter-electrode capacitances
Cgk2.2 pF
Cgp4 pF
Cpk0.8 pF
PinoutOctal
Era1939
RaritySought-after
HEATER6.3V / 0.6A
MAX PLATE300V / 2.5W
BASEoctal
SECTIONS2 (dual)

Source datasheets

1 manufacturer datasheets cross-checked for 6SN7GT

1 verified
TYPICAL OPERATING POINT
SPICE model(2 available)6 .subckt available ↓
Va168V
Ia1.14mA
Vg-8V
Pd0.19W
RL8kΩ
Av15.1dB
EXECUTIVE SUMMARY

The 6SN7 is a medium-mu (mu ~20) octal dual triode that many consider the finest-sounding small-signal tube ever made. Its separate cathode structure and generous physical size give it better linearity and lower distortion than the miniature 12AU7, which was designed as its noval replacement. The 6SN7 excels as a line stage, driver, and phase inverter, with a natural, open, dimensional sound quality that has made it the centerpiece of many reference preamp designs. Sylvania VT-231 (WWII era), Ken-Rad VT-231, and Tung-Sol round-plate variants are legendary among audiophiles, though Shuguang and Psvane produce credible current alternatives.

APPLICATIONS
Voltage amplifierPhase splitter
Sylvania Type 122 preampCary SLP-05
Hi-Fi stereo Headphone amp
HISTORY
Introduced1939ManufacturerSylvania·RCA·Tung-Sol
Pre-War
METRIX TESTER

Test this tube on a Metrix

CLASSIC CIRCUITS
Headphone Amp

6SN7 Preamp Stage

N/A

Classic 6SN7 medium-mu triode as driver or headphone preamp. Renowned for its musicality and natural tonal balance.

SEVb 300V · Vg -8V · RL 10kΩ
Sylvania 6SN7GT Datasheet
Headphone Amp

6AS7 OTL Headphone

0.5W

6SN7-based OTL headphone amplifier. Medium-mu triode in cathode follower configuration driving headphones directly. Classic OTL topology.

SEVb 150V · Vg -56V · RL 300Ω
RCA 6AS7G Datasheet / Bottlehead Crack
Preamp Stage

6SN7 Driver Stage

N/A

6SN7 as push-pull driver or line stage. Medium-mu octal triode beloved for its tonal character. Used in Cary, Supratek, and countless DIY designs.

SEVb 300V · Vg -8V · RL 20kΩ
Sylvania 6SN7GT Datasheet
