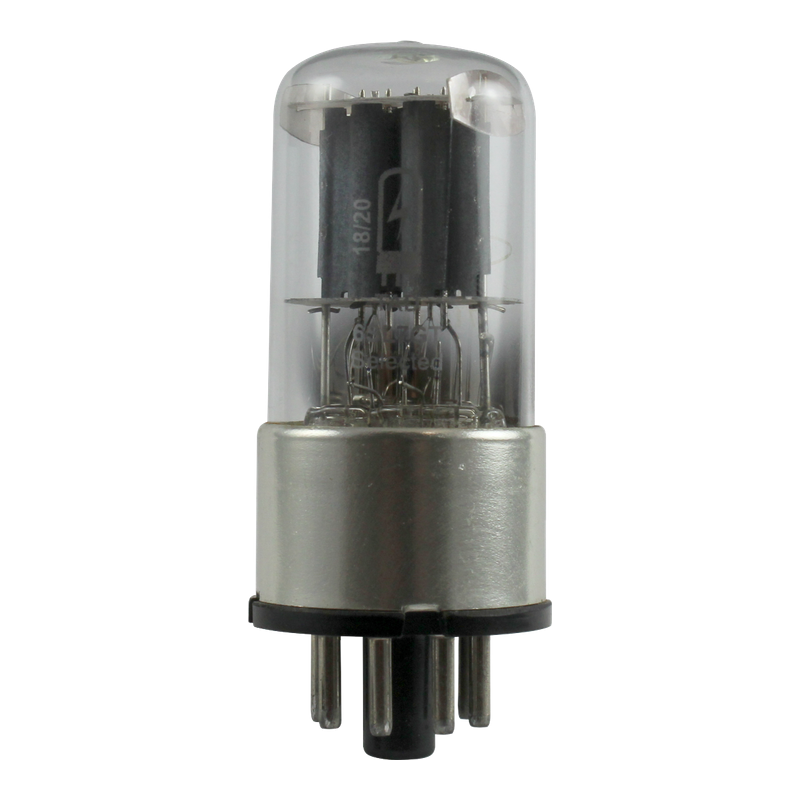

6SL7 6SL7GT Triode Vacuum Tube

Dual triode6.3V / 0.3AOctalSPICE
SourceRCA·Sylvania datasheetReviewed2026-05-29StatusDataModelCalcModelKoren v1PDF

Medium-gain triode for voltage amplification applications

Datasheet ↗SPICE
70
44.0kΩ
1.6mA/V
1.5pF
1.5pF
2.00pF
GAIN70%
POWER3%
DRIVE56%
LINEARITY65%
SPECIFICATIONS
Heater6.3 V · 0.3 A
Max Plate Voltage275 V
Pa max1.1 W
Gain Factor70
gm1.6 mA/V
rp44.0 kΩ
Inter-electrode capacitances
Cgk1.5 pF
Cgp1.5 pF
Cpk2 pF
PinoutOctal
Era1941
RarityModerate
HEATER6.3V / 0.3A
MAX PLATE275V / 1.1W
BASEoctal
SECTIONS2 (dual)

Source datasheets

1 manufacturer datasheets cross-checked for 6SL7GT

1 verified
TYPICAL OPERATING POINT
SPICE model(2 available)3 .subckt available ↓
Va219V
Ia1.5mA
Vg-2V
Pd0.33W
RL50kΩ
Av31.1dB
EXECUTIVE SUMMARY

The 6SL7 is the high-mu (mu ~70) companion to the 6SN7, sharing the same octal envelope but with higher gain and higher plate resistance (~44k ohms). It was widely used as a voltage amplifier and phase inverter in 1940s-50s amplifiers and fills a role similar to the 12AX7 but with the sonic advantages of the larger octal bottle construction. Its higher plate resistance compared to the 6SN7 makes it less suitable for driving loads but excellent as a first-stage gain element. RCA grey-glass and Sylvania versions are well-regarded NOS options, though availability has become increasingly scarce.

APPLICATIONS
Voltage amplifierHigh-gain preampPhase splitter
RCA BA-1A preamp
Hi-Fi stereo Headphone amp Studio/recording
HISTORY
Introduced1941ManufacturerRCA·Sylvania
Pre-War
METRIX TESTER

Test this tube on a Metrix

CLASSIC CIRCUITS
Preamp Stage

6SL7 Driver Stage

N/A

6SL7 high-mu octal triode as voltage amplifier. The octal predecessor to the 12AX7. Used extensively in 1940s-50s hi-fi preamps.

SEVb 250V · Vg -2V · RL 220kΩ
