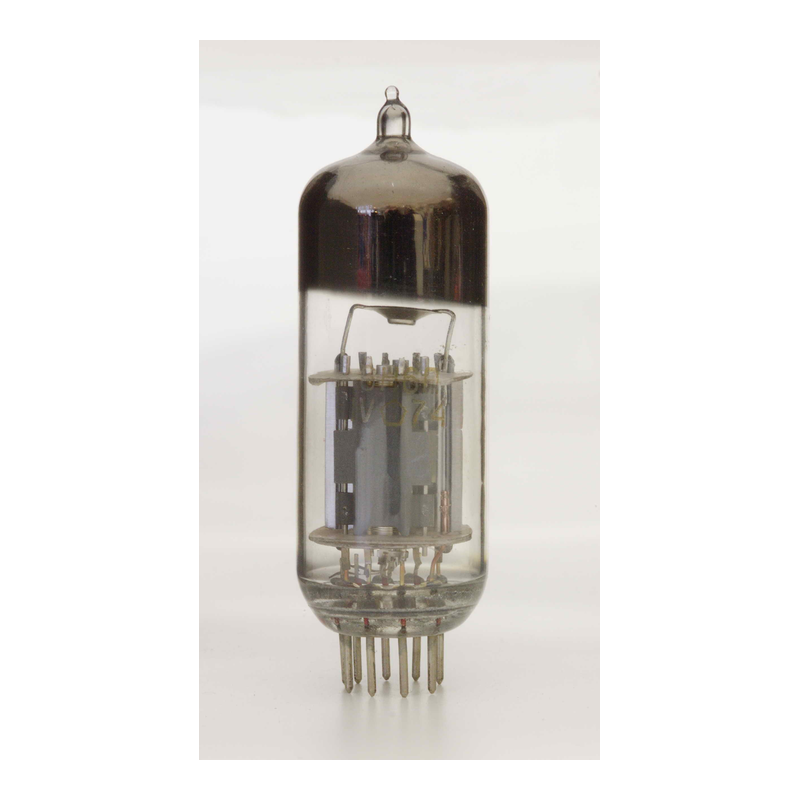

6N6P
Dual Triode · IHT · 9-pin Noval · 1970
“Low Rp driver. OTL capable.”
Medium-gain triode for driver and line stage applications
Datasheet ↗SPICE
GAIN FACTOR0
PLATE IMPEDANCE0kΩ
TRANSCONDUCTANCE0mA/V
Cgk0pF
Cgp0pF
Cpk0pF
GAIN16%
POWER12%
DRIVE98%
LINEARITY92%
TYPICAL OPERATING POINT
EXECUTIVE SUMMARY
The 6N6P is a dual indirectly-heated triode from Reflektor, introduced around 1970. It provides a gain factor (μ) of 15.5 with 1940Ω plate resistance. Commonly used in line / otl applications. Low Rp driver. OTL capable.
APPLICATIONS
Headphone outputLine stagePhase splitter
Generic triode line / otl stage
• Headphone amp
HISTORY
Introduced1970ManufacturerReflektorEquivalentsNone
Late ProductionSPECIFICATIONS
Heater Voltage6.3V
Heater Current0.75A
Max Plate Voltage300V
Max Power4.8W
Sensitivity8 mA/V
Gain Factor15.5
Internal Impedance1.9kΩ
Pinout9-pin Noval
Era1970
RarityModerate
Input Capacitance5pF
Miller Capacitance1.6pF
Output Capacitance2.1pF
