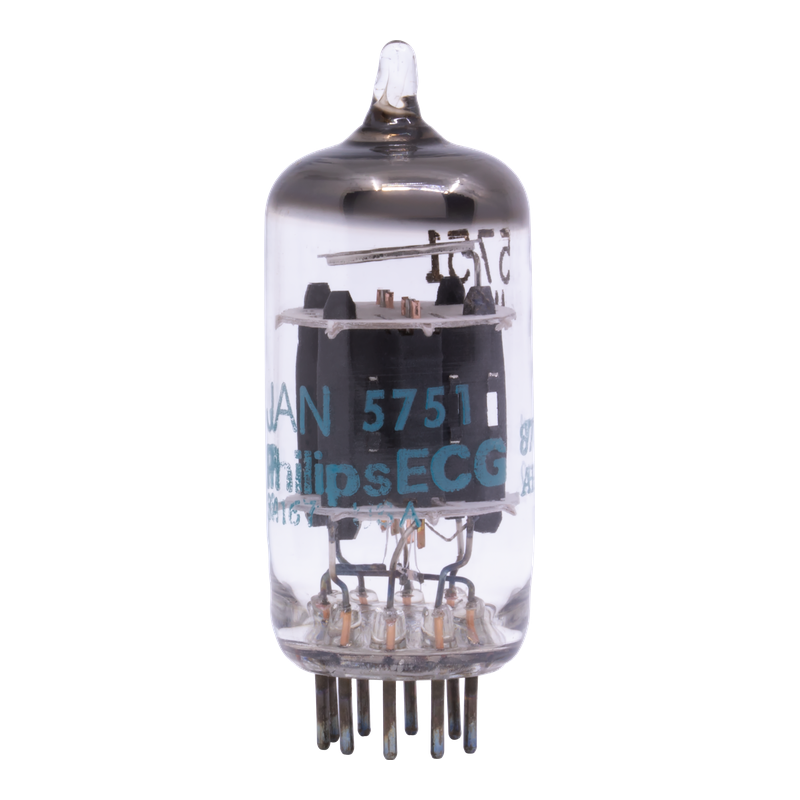

5751 Triode Vacuum Tube

Dual triode12.6V / 0.175A9-pin NovalSPICE
SourceGE·Sylvania·RCA datasheetReviewed2026-05-29StatusDataModelCalcModelKoren v1PDF

Medium-gain triode for voltage amplification applications

Datasheet ↗SPICE
70
58.0kΩ
1.2mA/V
1.4pF
1.4pF
0.46pF
GAIN70%
POWER2%
DRIVE42%
LINEARITY65%
SPECIFICATIONS
Heater12.6 V · 0.175 A
Max Plate Voltage330 V
Pa max0.8 W
Gain Factor70
gm1.2 mA/V
rp58.0 kΩ
Inter-electrode capacitances
Cgk1.4 pF
Cgp1.4 pF
Cpk0.46 pF
Pinout9-pin Noval
Era1954
RaritySought-after
HEATER12.6V / 0.175A
MAX PLATE330V / 0.8W
BASEnoval
SECTIONS2 (dual)

Source datasheets

6 manufacturer datasheets cross-checked for 5751

6 verified
TYPICAL OPERATING POINT
SPICE model(2 available)4 .subckt available ↓
Va180V
Ia0.82mA
Vg-2.17V
Pd0.15W
RL220kΩ
Av36.4dB
EXECUTIVE SUMMARY

The 5751 is a military-grade dual triode with a mu of approximately 70, designed as a high-reliability substitute for the 12AX7 in critical applications. Its 30% lower gain compared to a 12AX7 provides more headroom and a tighter, more controlled sound that many find preferable in both hi-fi and guitar amplifier service. The ruggedized construction with closer element spacing typically results in lower microphonics and longer lifespan. GE five-star, Sylvania Gold Brand, and Raytheon windmill-getter versions are the most sought-after variants, and it remains a popular 12AX7 substitute in demanding audio circuits.

APPLICATIONS
Voltage amplifierHigh-gain preampPhase splitter
Military-spec preamp stagesHi-Fi low-noise preamp
Hi-Fi stereo Studio/recording
HISTORY
Introduced1954ManufacturerGE·Sylvania·RCA
Golden Age
