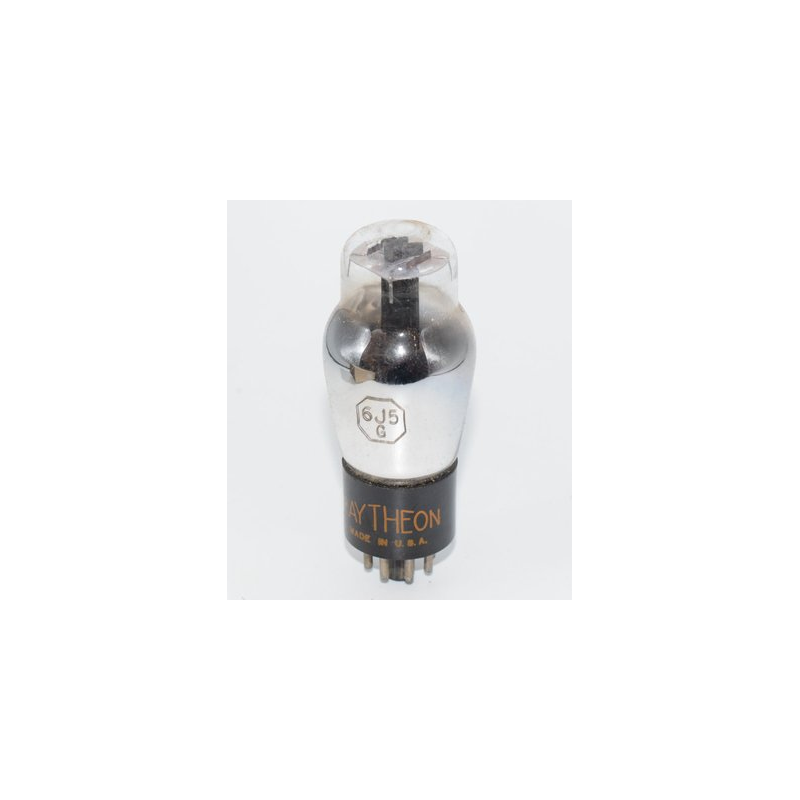

6J5

Triode · IHT · Octal · 1939

Half a 6SN7. Same lush musicality.

Medium-gain triode for driver and line stage applications

Datasheet ↗SPICE
GAIN FACTOR0
PLATE IMPEDANCE0kΩ
TRANSCONDUCTANCE0mA/V
GAIN20%
POWER6%
DRIVE92%
LINEARITY90%
HEATER6.3V / 0.3A
MAX PLATE300V / 2.5W
BASEoctal
TYPICAL OPERATING POINT
Va210V
Ia3.99mA
Vg-8.78V
Pd0.84W
RL12kΩ
Av20.9dB
EXECUTIVE SUMMARY

The 6J5 is a single-triode octal tube that is essentially one half of a 6SN7, with a mu of ~20 and plate resistance of ~7.7k ohms. Using two separate 6J5s instead of one 6SN7 eliminates crosstalk between sections and allows independent tube selection for each channel, which purists argue yields a blacker background and better channel separation. The tube was ubiquitous in 1940s radio and early television and is readily available as NOS in large quantities at modest cost. Its single-triode construction makes it a natural choice for minimalist preamp designs where each gain stage gets its own dedicated tube.

APPLICATIONS
Voltage amplifier
Generic triode preamp stage
Hi-Fi stereo Headphone amp
HISTORY
Introduced1939ManufacturerRCA·SylvaniaEquivalentsL63, CV1932
Pre-War
SPECIFICATIONS
Heater Voltage6.3V
Heater Current0.3A
Max Plate Voltage300V
Max Power2.5W
Sensitivity2.6 mA/V
Gain Factor20
Internal Impedance7.7kΩ
PinoutOctal
Era1939
RarityModerate
PDF

6J5 Datasheet

Frank's Electron Tube Pages · PDF
