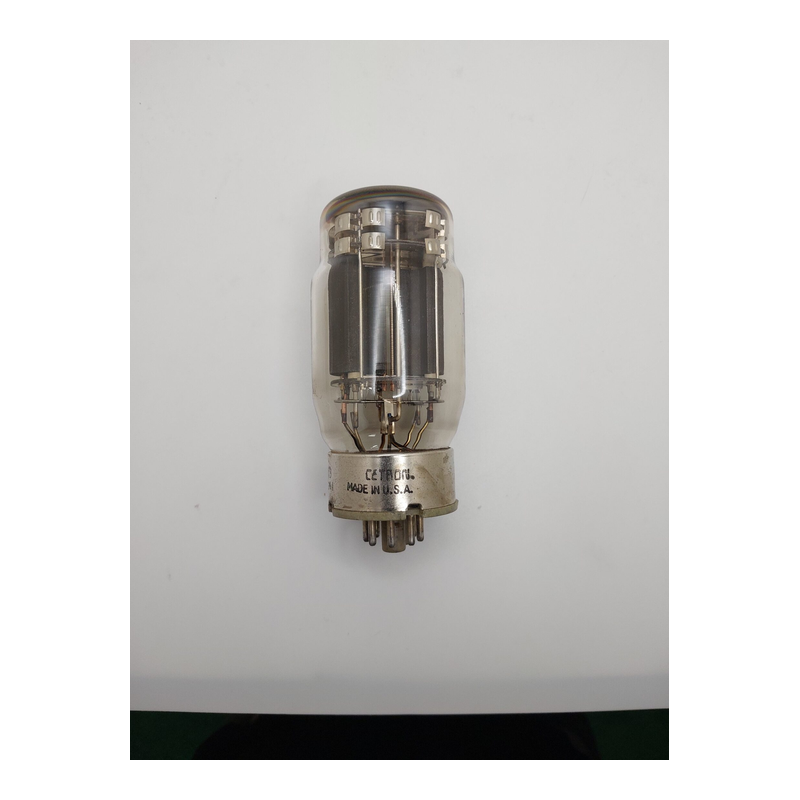

6336A
Triode · IHT · Octal · 1955
“OTL output. Massive current.”
High-power directly-heated triode for single-ended amplification
Datasheet ↗SPICE
GAIN FACTOR0
PLATE IMPEDANCE0Ω
TRANSCONDUCTANCE0mA/V
GAIN5%
POWER75%
DRIVE99%
LINEARITY95%
TYPICAL OPERATING POINT
EXECUTIVE SUMMARY
The 6336A is a indirectly-heated triode from GE·Raytheon, introduced around 1955. It provides a gain factor (μ) of 4.5 with 690Ω plate resistance. Commonly used in otl / regulator applications. OTL output. Massive current.
APPLICATIONS
SET outputPush-pull outputHeadphone output
Generic triode otl / regulator stage
• Headphone amp• PA/public address
VS CK6336A
HISTORY
Introduced1955ManufacturerGE·RaytheonEquivalentsCK6336A
Golden AgeSPECIFICATIONS
Heater Voltage6.3V
Heater Current5A
Max Plate Voltage400V
Max Power30W
Sensitivity6.5 mA/V
Gain Factor4.5
Internal Impedance690Ω
PinoutOctal
Era1955
RarityModerate
