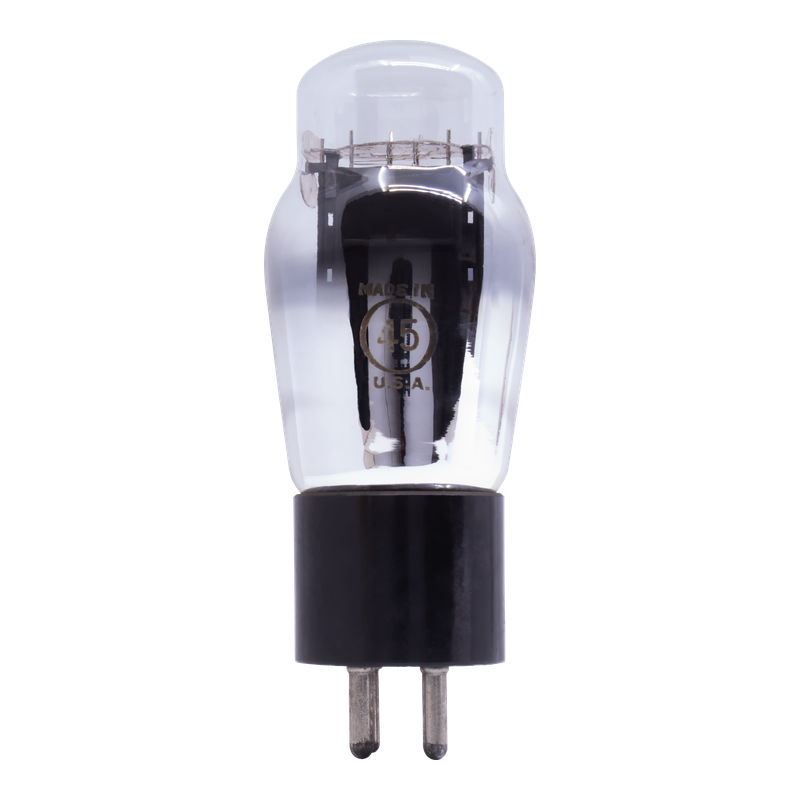

Triode · DHT · UX-4 · 1929
“Purest SET tone.”
High-power directly-heated triode for single-ended amplification
Datasheet ↗SPICE
GAIN FACTOR0
PLATE IMPEDANCE0kΩ
TRANSCONDUCTANCE0mA/V
GAIN4%
POWER25%
DRIVE98%
LINEARITY95%
TYPICAL OPERATING POINT
EXECUTIVE SUMMARY
The type 45 is a directly-heated triode from the late 1920s, producing roughly 1.5-2W in single-ended Class A. It is widely regarded as possessing the most transparent, pure midrange of any power tube ever made, with a directness that makes 300Bs sound colored by comparison. The penalty is its extremely low power output, demanding speakers of 97dB+ sensitivity. Its 2.5V filament supply and fragile construction make it a tube for dedicated enthusiasts, with NOS RCA, Sylvania, and United Electronics examples being the most prized.
APPLICATIONS
SET outputPush-pull outputHeadphone output
RCA MI-1356 theatre ampElectro-Voice Circlotron
• Hi-Fi stereo• Headphone amp
HISTORY
Introduced1929ManufacturerRCAEquivalents245, VT-52
Pre-WarSPECIFICATIONS
Heater Voltage2.5V
Heater Current1.5A
Max Plate Voltage275V
Max Power10W
Sensitivity2.2 mA/V
Gain Factor3.5
Internal Impedance1.6kΩ
PinoutUX-4
Era1929
RarityCollector
CLASSIC CIRCUITS
45 SE Classic250V · SE
