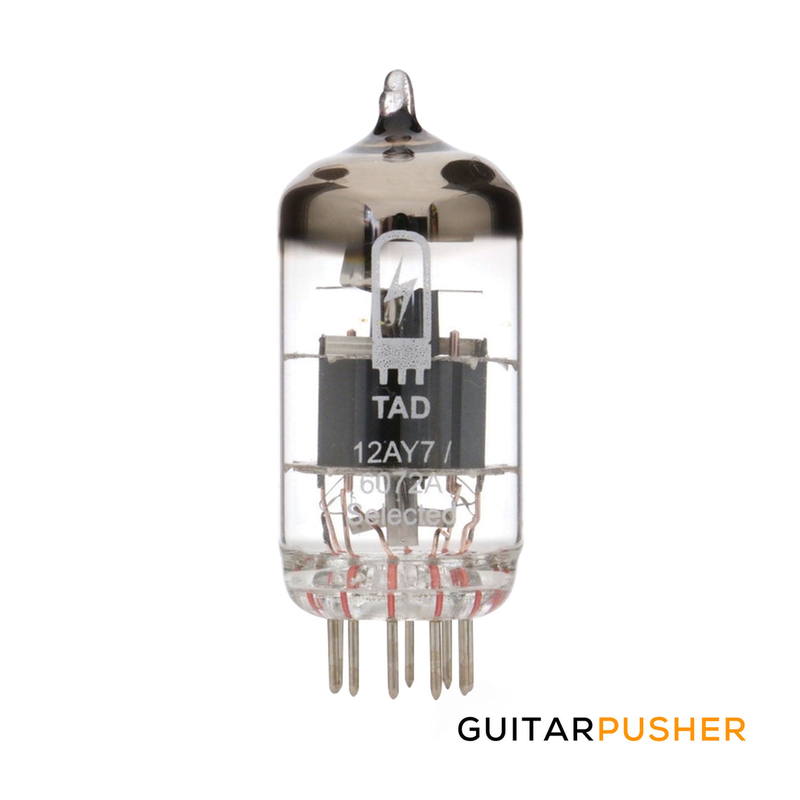

12AY7

Dual Triode · IHT · 9-pin Noval · 1948

Original Fender preamp tube.

Medium-gain dual triode for voltage amplification applications

Datasheet ↗SPICE
GAIN FACTOR0
PLATE IMPEDANCE0kΩ
TRANSCONDUCTANCE0mA/V
GAIN40%
POWER4%
DRIVE82%
LINEARITY80%
HEATER12.6V / 0.15A
MAX PLATE300V / 1.5W
BASEnoval
SECTIONS2 (dual)
TYPICAL OPERATING POINT
Va180V
Ia2.57mA
Vg-2.58V
Pd0.46W
RL100kΩ
Av30.9dB
EXECUTIVE SUMMARY

The 12AY7 (6072) is a dual triode with a mu of approximately 44, sitting between the 12AU7 and 12AX7 in gain. It was the original V1 tube in early Fender tweed amplifiers, giving those amps their distinctively touch-sensitive, dynamically responsive character before Fender switched to the hotter 12AX7. The lower gain provides more headroom and a more gradual onset of distortion than a 12AX7, which many players and amp builders prefer for clean-to-edge-of-breakup tones. GE and Sylvania manufactured the majority of NOS examples, and current production options are limited.

APPLICATIONS
Voltage amplifierPhase splitter
Generic triode preamp stage
Hi-Fi stereo Headphone amp
HISTORY
Introduced1948ManufacturerGE·RCAEquivalents6072A
Golden Age
SPECIFICATIONS
Heater Voltage12.6V
Heater Current0.15A
Max Plate Voltage300V
Max Power1.5W
Sensitivity2.2 mA/V
Gain Factor40
Internal Impedance18.2kΩ
Pinout9-pin Noval
Era1948
RarityModerate
