What is the E130L vacuum tube?

The E130L (E130L / 7534) is a pentode vacuum tube designed for power (se/pp) applications. Extraordinary wideband pentode. Massive gm..

What is a E130L substitute or equivalent?

Direct equivalents to the E130L include 7534. These share the same pinout and operating envelope, so they can usually be swapped without circuit changes — though batch-to-batch variations between manufacturers (NOS vs current production) may shift the sonic character noticeably.

What are the key specifications of the E130L?

Amplification factor μ ≈ 6, transconductance gm ≈ 27.5 mA/V, plate resistance rp ≈ 10.0 kΩ, max plate voltage 900 V, max plate dissipation 27.5 W, heater 6.3 V / 1.7 A.

Is the E130L still in production?

Production status varies by year and manufacturer. The current Amperatubes catalog classifies the E130L as Rare availability. NOS (new-old-stock) examples from RCA, Mullard, Tung-Sol, GE, Sylvania and Telefunken trade among collectors; modern production where it exists comes mostly from JJ Electronic, Electro-Harmonix, Tung-Sol (New Sensor), Genalex, and a handful of small-batch makers.

What does the E130L sound like?

Extraordinary wideband pentode. Massive gm.. Sonic character also depends heavily on the circuit operating point, the surrounding tubes in the stage, and the output transformer when present — use the interactive loadline calculator on this page to explore the trade-offs.

By Jean-Michel Falligan Devergne · Reviewed May 29, 2026

←E130L

← DO24 E180F →Compare…

E130L E130L / 7534 Pentode Vacuum Tube

Pentode6.3V / 1.7AOctal 8-pin

SourcePhilips E130L/7534 datasheetReviewed2026-05-29StatusDataModelCalcModelunder reviewPDF

Power pentode delivering up to 27.5W in pentode, UL, or triode mode

Datasheet ↗

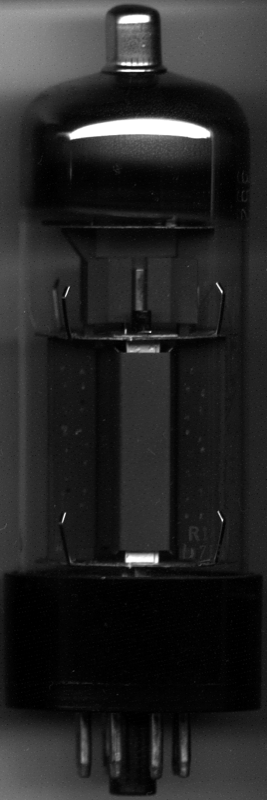

E130L / 7534 — Telefunken·Philips — pentode vacuum tube — (1960)

10.0kΩ

27.5mA/V

35.0pF

2.0pF

17.00pF

GAIN6%

POWER69%

DRIVE90%

LINEARITY95%

SPECIFICATIONS

Heater6.3 V · 1.7 A

Max Plate Voltage900 V

Pa max27.5 W

Gain Factor6

gm27.5 mA/V

rp10.0 kΩ

Inter-electrode capacitances

Cgk35 pF

Cgp2 pF

Cpk17 pF

PinoutOctal 8-pin

Era1960

RarityRare

HEATER6.3V / 1.7A

MAX PLATE900V / 27.5W

BASEoctal

Source datasheets

3 manufacturer datasheets cross-checked for E130L / 7534

3 verified

EXECUTIVE SUMMARY

The E130L is a indirectly-heated pentode from Telefunken·Philips, introduced around 1960. It provides a gain factor (μ) of 6 with 10.0kΩ plate resistance. Commonly used in power (se/pp) applications. Extraordinary wideband pentode. Massive gm.

APPLICATIONS

Power output

Generic pentode power (se/pp) stage

• PA/public address

HISTORY

Introduced1960ManufacturerTelefunken·Philips

Late Production

E130L Datasheet

Local mirror · PDF

↗

METRIX TESTER

Test this tube on a Metrix

SPICE model not yet available. Loadline calculator requires calibrated Koren parameters.
