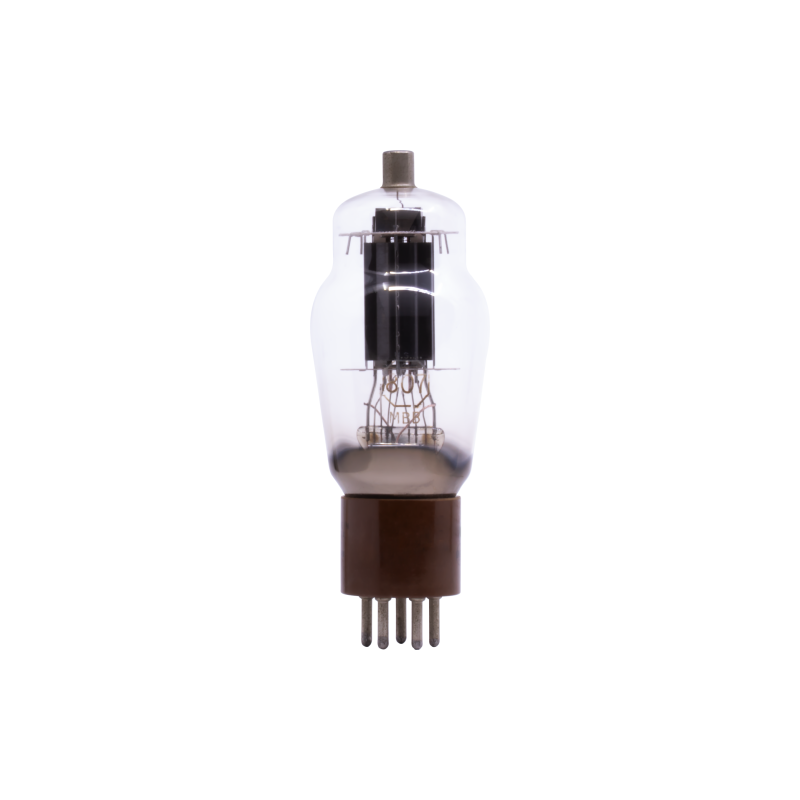

Tetrode · IHT · UX-5 · 1937
“WWII workhorse. Great audio.”
Beam power tetrode rated at 30W for high-power output stages
Datasheet ↗SPICE
TRANSCONDUCTANCE0mA/V
GAIN0%
POWER75%
DRIVE50%
LINEARITY75%
TYPICAL OPERATING POINT
EXECUTIVE SUMMARY
The 807 is a indirectly-heated beam tetrode from RCA, introduced around 1937. Commonly used in transmitting / power applications. WWII workhorse. Great audio.
APPLICATIONS
High-power output
Ham radio transmitterHeathkit DX-100
• PA/public address
VS 1625
Pd 0%Full comparison →
HISTORY
Introduced1937ManufacturerRCAEquivalents1625, VT-100A
Pre-WarSPECIFICATIONS
Heater Voltage6.3V
Heater Current0.9A
Max Plate Voltage750V
Max Power30W
Sensitivity6 mA/V
Gain Factor—
Internal Impedance—
PinoutUX-5
Era1937
RarityCommon
