What is the 7119 vacuum tube?

The 7119 (7119 / E182CC) is a triode vacuum tube designed for driver / preamp applications. Premium dual triode. 5687 family king..

What is a 7119 substitute or equivalent?

Direct equivalents to the 7119 include E182CC, CV5766. These share the same pinout and operating envelope, so they can usually be swapped without circuit changes — though batch-to-batch variations between manufacturers (NOS vs current production) may shift the sonic character noticeably.

What are the key specifications of the 7119?

Amplification factor μ ≈ 24, transconductance gm ≈ 15 mA/V, plate resistance rp ≈ 1.6 kΩ, max plate voltage 300 V, max plate dissipation 4.5 W, heater 6.3 V / 0.64 A.

Is the 7119 still in production?

Production status varies by year and manufacturer. The current Amperatubes catalog classifies the 7119 as Sought-after availability. NOS (new-old-stock) examples from RCA, Mullard, Tung-Sol, GE, Sylvania and Telefunken trade among collectors; modern production where it exists comes mostly from JJ Electronic, Electro-Harmonix, Tung-Sol (New Sensor), Genalex, and a handful of small-batch makers.

What does the 7119 sound like?

Premium dual triode. 5687 family king.. Sonic character also depends heavily on the circuit operating point, the surrounding tubes in the stage, and the output transformer when present — use the interactive loadline calculator on this page to explore the trade-offs.

By Jean-Michel Falligan Devergne · Reviewed May 29, 2026

←7119

← 7044 71A →Compare → E182CC

7119 7119 / E182CC Triode Vacuum Tube

Dual triode6.3V / 0.64A9-pin Noval

SourceAmperex·PhilipsReviewed2026-05-29StatusDataModelCalcModelunder reviewPDF

Medium-gain triode for driver and line stage applications

Datasheet ↗

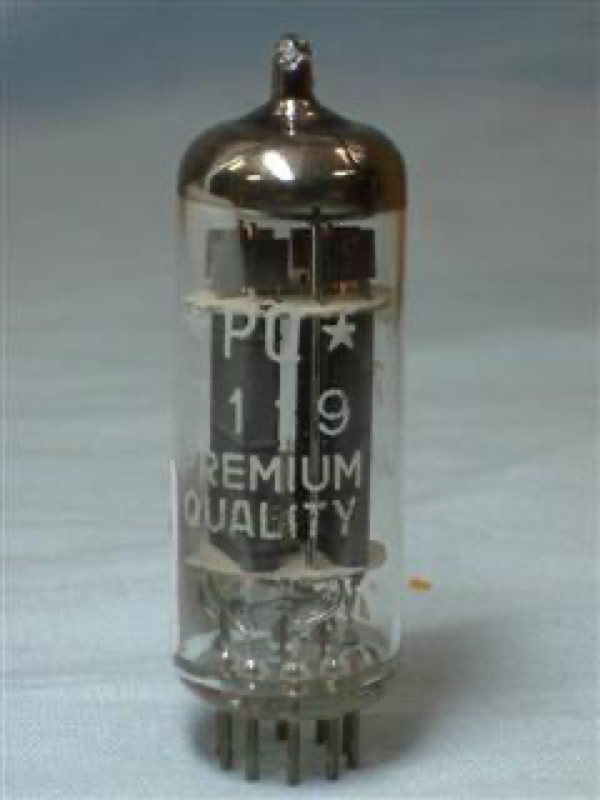

7119 / E182CC — Amperex·Philips — triode vacuum tube — (1960)

1.6kΩ

15.0mA/V

5.8pF

3.9pF

1.10pF

GAIN24%

POWER11%

DRIVE98%

LINEARITY88%

SPECIFICATIONS

Heater6.3 V · 0.64 A

Max Plate Voltage300 V

Pa max4.5 W

Gain Factor24

gm15 mA/V

rp1.6 kΩ

Inter-electrode capacitances

Cgk5.8 pF

Cgp3.9 pF

Cpk1.1 pF

Pinout9-pin Noval

Era1960

RaritySought-after

HEATER6.3V / 0.64A

MAX PLATE300V / 4.5W

BASEnoval

SECTIONS2 (dual)

Source datasheets

1 manufacturer datasheets cross-checked for 7119 / E182CC

1 verified

EXECUTIVE SUMMARY

The 7119 is a dual indirectly-heated triode from Amperex·Philips, introduced around 1960. It provides a gain factor (μ) of 24 with 1600Ω plate resistance. Commonly used in driver / preamp applications. Premium dual triode. 5687 family king.

APPLICATIONS

Voltage amplifierHeadphone outputPhase splitter

Generic triode driver / preamp stage

• Hi-Fi stereo• Headphone amp

VS E182CC

μ 0%Rp +0%Pd 0%Full comparison →

HISTORY

Introduced1960ManufacturerAmperex·Philips

Late Production

7119 Datasheet

Frank's Electron Tube Pages · PDF

↗

METRIX TESTER

Test this tube on a Metrix

SPICE model not yet available. Loadline calculator requires calibrated Koren parameters.
