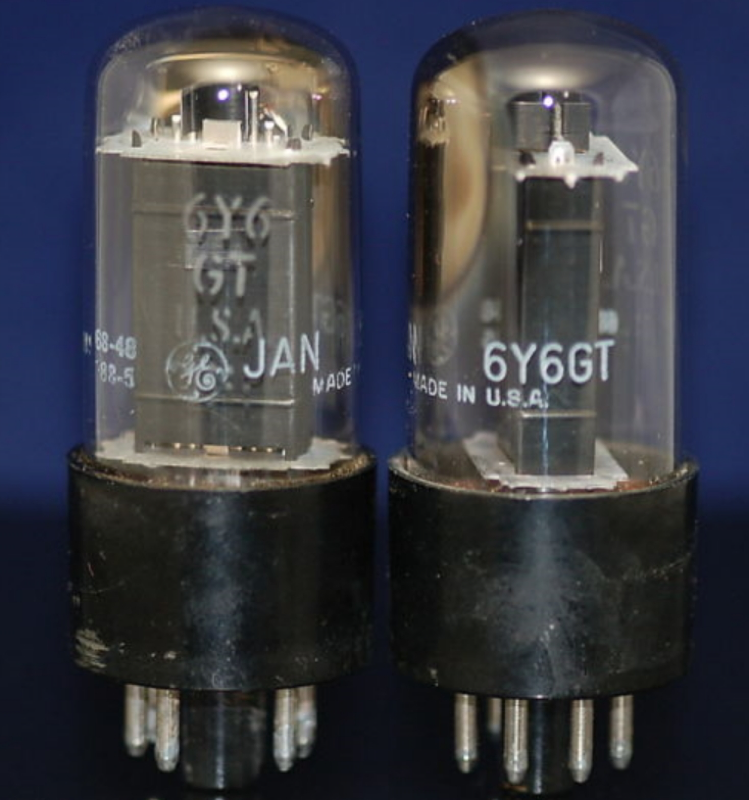

6Y6GT
Pentode · IHT · Octal · 1940
“Beam power.”
Power pentode delivering up to 12.5W in pentode, UL, or triode mode
TRANSCONDUCTANCE0mA/V
GAIN0%
POWER31%
DRIVE50%
LINEARITY75%
EXECUTIVE SUMMARY
The 6Y6GT is a indirectly-heated pentode from RCA, introduced around 1940. Commonly used in power applications. Beam power.
APPLICATIONS
Power output
Generic pentode power stage
HISTORY
Introduced1940ManufacturerRCAEquivalentsNone
Pre-WarSPECIFICATIONS
Heater Voltage6.3V
Heater Current1.25A
Max Plate Voltage375V
Max Power12.5W
Sensitivity5 mA/V
Gain Factor—
Internal Impedance—
PinoutOctal
Era1940
RarityCommon
SPICE model not yet available. Loadline calculator requires calibrated Koren parameters.
