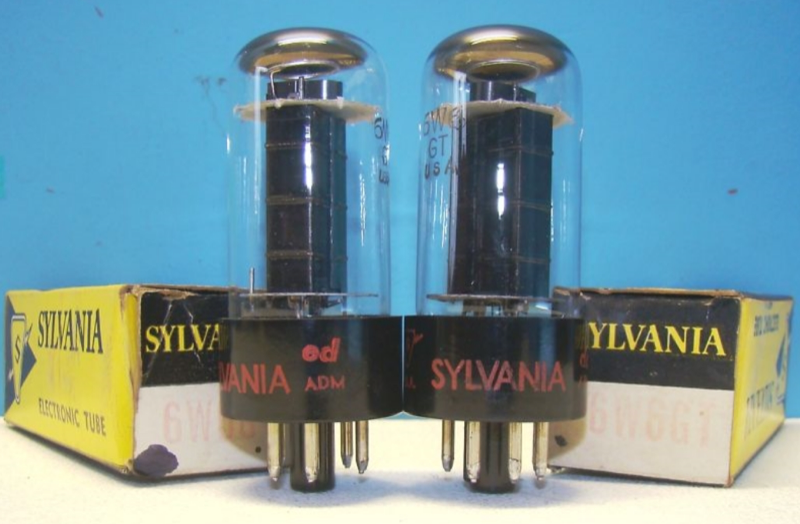

6W6GT
Pentode · IHT · Octal · 1939
“Smooth delivery.”
Power pentode delivering up to 10W in pentode, UL, or triode mode
TRANSCONDUCTANCE0mA/V
GAIN0%
POWER25%
DRIVE50%
LINEARITY75%
EXECUTIVE SUMMARY
The 6W6GT is a indirectly-heated pentode from RCA, introduced around 1939. Commonly used in power applications. Smooth delivery.
APPLICATIONS
Power output
Generic pentode power stage
HISTORY
Introduced1939ManufacturerRCAEquivalentsNone
Pre-WarSPECIFICATIONS
Heater Voltage6.3V
Heater Current0.65A
Max Plate Voltage375V
Max Power10W
Sensitivity3.4 mA/V
Gain Factor—
Internal Impedance—
PinoutOctal
Era1939
RarityCommon
SPICE model not yet available. Loadline calculator requires calibrated Koren parameters.
