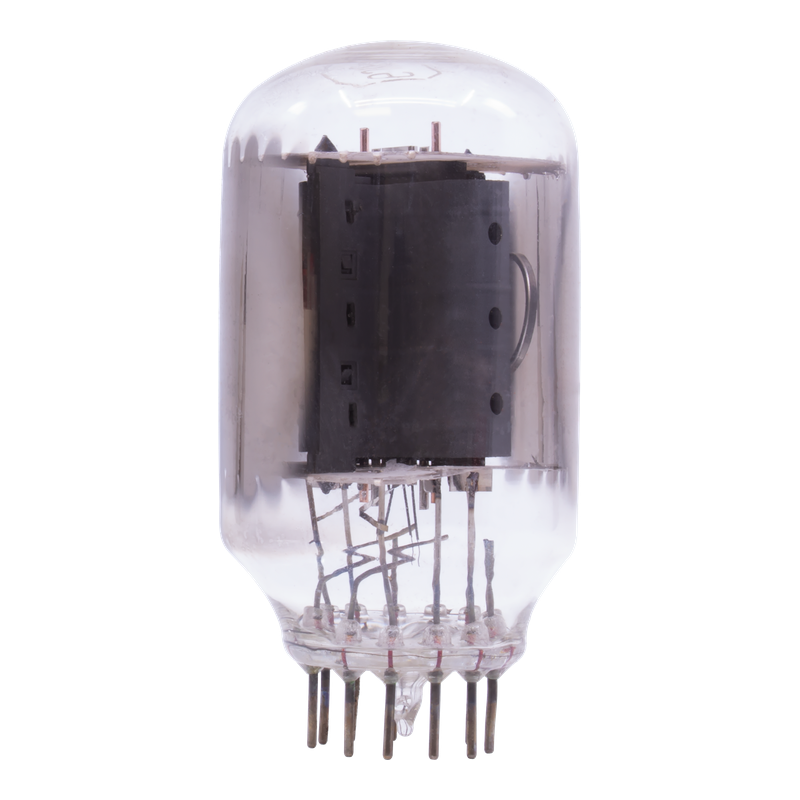

6JN6
Pentode · IHT · 12-pin Compactron · 1962
“Compactron sweep.”
Power pentode delivering up to 17.5W in pentode, UL, or triode mode
Datasheet ↗SPICE
TRANSCONDUCTANCE0mA/V
Cgk0pF
Cgp0pF
Cpk0pF
GAIN0%
POWER44%
DRIVE50%
LINEARITY75%
EXECUTIVE SUMMARY
The 6JN6 is a indirectly-heated pentode from RCA, introduced around 1962. Commonly used in power applications. Compactron sweep.
APPLICATIONS
Power output
Generic pentode power stage
HISTORY
Introduced1962ManufacturerRCAEquivalentsNone
Late ProductionSPECIFICATIONS
Heater Voltage6.3V
Heater Current1.8A
Max Plate Voltage600V
Max Power17.5W
Sensitivity8 mA/V
Gain Factor—
Internal Impedance—
Pinout12-pin Compactron
Era1962
RarityCommon
Input Capacitance16pF
Miller Capacitance0.9pF
Output Capacitance11pF
